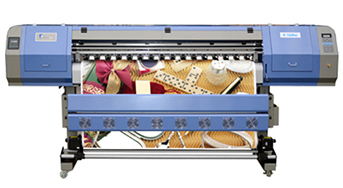

This Epson machine offers a printing quality which is competitive to the Japanese eco solvent printers.
It offers automatic feeding and collecting structure.
It comes with two head model and four head model combined with intelligent infrared heater and fan drying system.
The machine undergone different quality tests and it is stable and enough for mass production requirement.
LED-UV solution for option.
| Model No | E180 / 160 | E320 |
| Printhead | Micro piezo print head | |
| Inks | Water-based/Thermal transfer/Solvent-based | |
| Maximum printing width | 180 /160cm | 320cm |
| Resolution | 540dpi、720dpi、1440dpi | |
| Printing modes | 2pass、3pass、4pass、6pass、8pass、12pass | |
| Speed with single printhead | 344scilih、236scr/h 、118sglh 86sg'./h 、59sglh | |
| Speed with two printheads | 688sglh 、473sg'iti 、344sglh 、236s0h 172sg-7h 118scC/h | |
| Four heads printing speed | 1375g11h 、9460 h 、688sg-Th 、473seil/h 、344sg'M 、236scC/h | |
| Ink cassette capacity | 1000cc/color | |
| Three heating sections | None | Pre-heater, printing bed heater, rear heater30℃-65℃ |
| Picture drying system | Standard configuration: Infrared heating with fan drying system | |
| Auto feeding/collecting system | Standard configuration | |
| Environmental conditions | Temperature15-35℃ Relative Humidity：40%-65% Power: 1.8KW | |
| Dimensions(L*W*H)/Weight | 3 I 10•700•1380/300kg | 4420•820•14513/1300kg |
