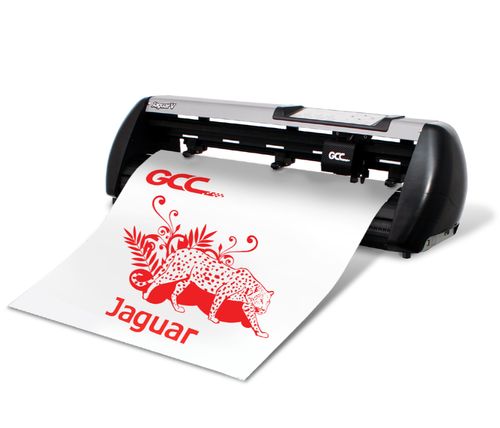

The all-new Jaguar V series of vinyl cutting plotters includes the Jaguar V models (J5-61, J5-101 and J5-132), and Jaguar V LX models (J5-61LX, J5-101LX, J5-132LX and J5-183LX) . With intuitive features to meet the demands of today's professionals, the Jaguar V series represents the apex of vinyl cutting plotter technology.
| Jaguar V Series | J5-61 | J5-101 | J5-132 | |
|---|---|---|---|---|
| J5-61LX | J5-101LX | J5-132LX | J5-183LX | |
| Operational Method | Roller type | |||
| Max. Cutting Width | 610 mm (24") | 1016mm (40") | 1320mm (52") | 1830 mm (72") |
| Max. Media Loading Width | 770mm (30.3") | 1270mm (50") | 1594mm (62.75") | 1990mm (78.3") |
| Min. Media Loading Width | 50 mm (1.97") | 300mm (11.8") | ||
| Number of Pinch Rollers | 3 | 4 | 6 | |
| Acceptable Material Thickness | 0.8 mm (0.03") | |||
| Drive | DC Servo Control | |||
| Cutting Force | 5 ~ 600g | |||
| Max. Cutting Speed | 1530 mm/sec (60 ips) (at 45° direction) | |||
| Acceleration | 4.2 G (gravity) | |||
| Offset | Yes | |||
| Offset | 0~1.0 mm (with an increase of 0.025mm) | |||
| Memory Buffer | 32 MB /16 MB (when using AAS) | |||
| Interfaces | USB 2.0 (Full Speed), Serial (RS-232), and Ethernet | |||
| Type of Command Interfaces | HP-GL, HP-GL/2 | |||
| Mechanical Resolution | 0.05 mm | |||
| Software Resolution | 0.025 mm | |||
| Distance Accuracy | ±0.254 mm or ±0.1% of move, whichever is greater | |||
| Repeatability | ±0.1 mm | |||
| Automatic-Aligning System (AAS II) | Available on Jaguar V LX models, including Segmental Positioning and Auto Rotation functions | |||
| Section Cutting | yes | |||
| Auto Rotation | yes | |||
| Curve & Arc Smoothing | yes | |||
| Configurable Origin | yes | |||
| Test Cut capability | yes | |||
| Tangential mode | yes | |||
| Over Cut | yes | |||
| Repeat | yes | |||
| Copy | yes | |||
| Pouncing | Optional | |||
| Control Panel | LCD (20 digits x 2 lines), 14 Keys, 1 Power LED | |||
| Diameter of Blade | 2.5 mm | |||
| Stand | Optional | Standard | ||
| Media Basket | optional | |||
| Power Supply | 100~240 VAC 50 / 60 Hz (auto switching) | |||
| power Consumption | Max. 110 watts | |||
| Dimension in mm | 412 * 950 * 486 | 1096 * 1450 * 651 | 1111 * 1774 * 651 | 1127 * 2170 * 756 |
| Dimension in in. | 16.2 * 37.4 * 19.1 | 43.1 * 57 * 25.6 | 43.7 * 69.8 * 25.6 | 44.4 * 85.4 * 29.8 |
| Net Weight | 18 kg/ 39.6 lb | 41.5 kg/ 91.4 lb | 50 kg/ 110.2 lb | 63 kg/ 138.6 lb |
| Operation Environmen | Temperature | 15° C~30° C / 60°F~86° F | ||
| CHumidity | 25% - 75% | |||
Compatible with Windows 7 and above & MAC OS X 10.6 and above. (*Using "Sure Cuts A Lot" software to work with Mac OS.)
The specification and data sheet may vary with different materials used. In order to obtain the best output quality, please maintain the machine regularly and properly.
GCC reserves the right to change the specifications at any time without notice.
GCC certified material in tracking is Avery MPI 3000.
The above listed specification values are effective only when operated with media certified by GCC.
