HOT & Cold Laminator

HOT & Cold Laminator


Professional sturdy and robust Laminator designed toguarantee every day high quality results with great speed (ondemand up to 10 mirmin)

64 ALUMINUM SHAFTS total 4 shafts) for easy loading andu ntoading of the rolls

It can support big and heavy rolls with diameter up to 200mm (8 in,) thanks to the increased distance between rollersand support shafts

Heated upper roller with preset electronic temperatureregulation - standard on FAYON 1600 mode!(Room- 604C) (room -140'F)

Ideal for mounting images on panels even of largedimensions, solutions applying at the same time with aplastic film or an adhesive for single-side mounting

Intuitive set up parameters thanks to the user- friendly control panel

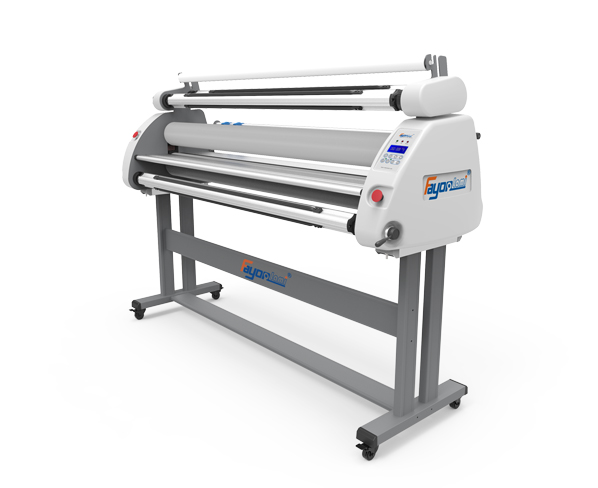

AUTO COLD/WARM ROLL TO ROLL LAMINATOR 1600DA

Machine dimension Packing dimension Weight
200crn*60CM* I 20CM 225CM*820.1*80CM
I.4 BM
236KGS

Product Specification:

Model I600DA
Max laminating width I620mrn
Max lamination thickness 3 5rnm
Max speed I Omirnin
Max temp room-60°C
Roller upgrade Air cylinder
Roller Silicon
Heating Infrared
Preheating I 0-15rnin
Power input 0.8-1.0kvoti
Volt I I012
N.W. 230kgs

AUTO cold/warm laminator FAYON 1600DA is a professional equipment in the printing and post-processing, cater to your varying needs, widely used in the advertising, exhibition organizers, picture production, studio and many other fields,become the most ideal corollary equipment of digital printing product


Application:


Self-adaptive coated thickness, a diustable laminating pressure, fit for laminate rolling media and flat surface board.Simple operation, wide suitability, dependable safety, multiple functions.


Downloading catalogue
