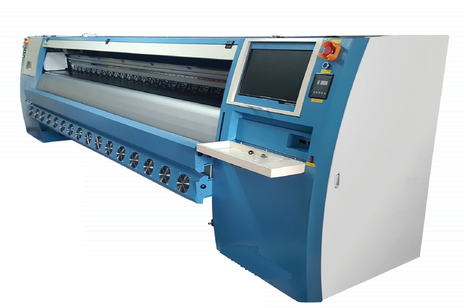

AllWin E512i ( Solvent )

AllWin E512i ( Solvent )

We Sai Techno Sign Pvt Ltd. are the authorised and sole dealer of allwin flex printing machines all india.

Main Features:

1. Heavy body flex printing machine with grand appearance, in style, speed and quality, to meet new industry standard.
2. Well equipped and Standard display key board and display are integrated with flex machine, blazonry and provides more convenience.
3. flex primter is equipped with sliding feeding guide rail, it is suitable for media of different width and ensures smooth media printing.



Product Specification:

E320/500(512i/30pl 8Head)


2pass  360*360dpi 260㎡/h
3pass 360*540dpi 180㎡/h
 2pass 480*360dpi 210㎡/h
3pass 480*540dpi 140㎡/h
4pass 480*720dpi 110㎡/h

E320/500(1024/42pl 8Head)


2pass  180*720dpi 160㎡/h
3pass 240*720dpi 120㎡/h
 2pass 180*1080dpi 104㎡/h
3pass 240*1080dpi 80㎡/h
4pass 180*720dpi 80㎡/h

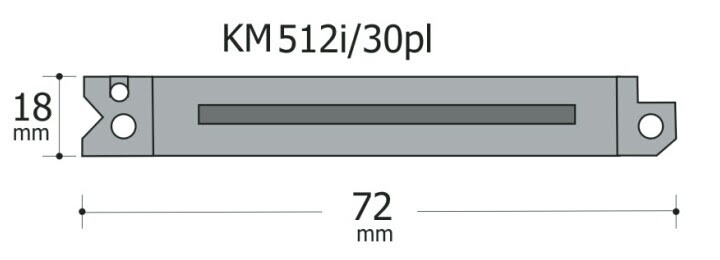

Konica Minolta KM512i printhead

1. It has 512 nozzles which firing frequency has increased 4 times, each nozzle can jet 30000 droplets in one second
2. It adopts 30PL droplet size, which can enhance picture quality in short distance observation.

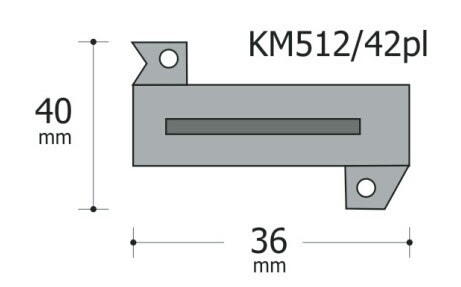

3. Nozzle density has developed from 360dpi to 180dpi, so the width of single pass has increased by one time.(512i/30pl printhead size is equal to 2 pieces of 512/42pl printheads)

Konica Minolta KM512i printhead

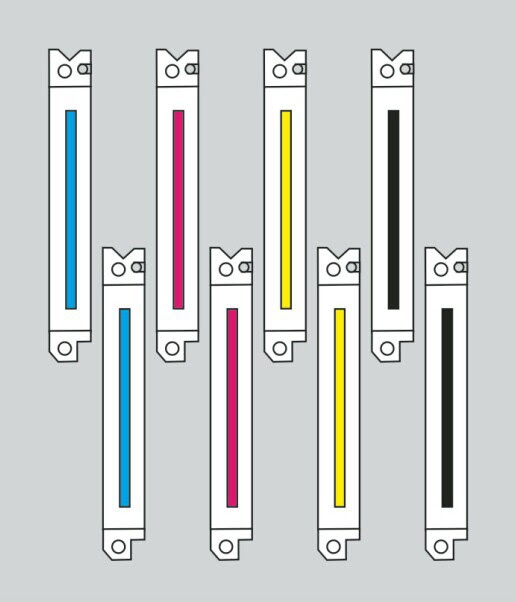

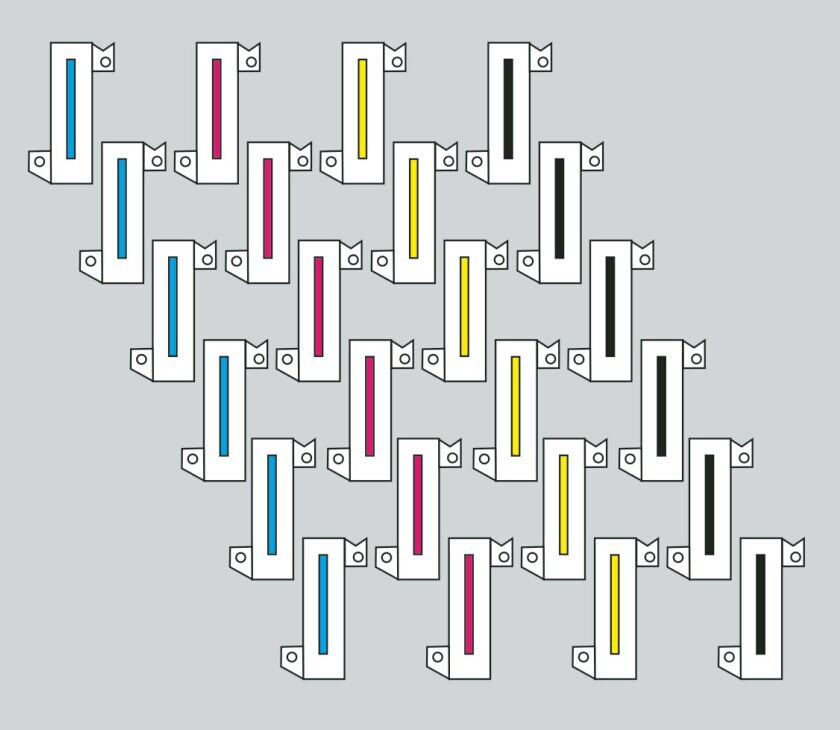

8 piece KM512i/30pl printheads is equal to 24 pieces KM 510/42pl printhead

480*360dpi:240sqm/h

180*720dpi:240sqm/h
