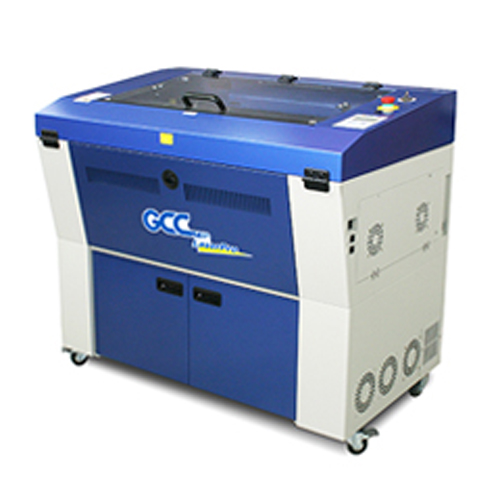

GCC Laser Machine

GCC Laser Machine

LaserPro Spirit is designed with the operator in mind and carrying various innovative features, reliable mechanics, and excellent output quality. LaserPro Spirit is the missing piece in your operations puzzle, putting you on track for continued growth in your engraving and cutting business!



Product Specification:

Model No Spirit
Work Area 25 x18 in. (640 mm x 460 mm) Extendable to 29x18 in. (740 x 460 mm)
Max. Part Size (W x L x H) 30 x 19 x 6.5 in. (762 x 482.6 x 165 mm)
Table Size 31.1 x 20.9 in. (790 x 530 mm)
Dimensions (W x L x H) 44.3 x 28.3 x 39.6 in. (1125 x 720 x 1005 mm)
Laser Source 12 to 100W 10.6-μm sealed CO2 Laser / 20W & 60W 9.3-μm sealed CO2Laser
Cooling Air-cooled, Operating environment temperature 15o - 30oC (60o - 86oF)
Drive Closed-loop DC Servo control
Maximum Motor Speed 60 IPS
Throughput* 245.5 in²/ hr (1584 cm²/ hr)
Throughput* with SmartACT Enabled 283.4 in²/ hr (1828.8 cm²/ hr)
Speed Control Adjustable from 0.1-100% of 60IPS (Up to 16 color-linked speed settings per job)
Power Control Available from 0~100% (UP to 16 colors linked power setting per job)
Engraving capability 256-level gray scale image processing capability
Distance 0.254mm or 0.1% of move, whichever is greater
Z-Axis Movement Automatic
Focus Lens Standard 2.0", optional 1.5", 2.5" & 4.0" available
Resolution (DPI) Available 125, 250, 300, 380, 500, 600, 760, 1000, 1500
Computer Interface 10 Base-T Ethernet, Full speed 2.0 USB
Memory Buffer 32MB standard
Compatible Operating Systems MS Windows
Display Panel 4-line LCD panel showing current file name, total working time, laser power, engraving speed, file(s) loaded into memory buffer, setup and diagnostic menus
Safety Class I Laser Product Compliant with EN60825 Class II Laser Product Compliant with CDRH 2006/42/EC Machinery Directive Compliance
Operation Voltage Laser below 80Watt, 100-240VAC, 50-60Hz Auto Switching, Max. 15A; Laser 80Watt and above, 200-240VAC, 50-60Hz, Max. 15A
Fume Extraction System External exhaust system is required, 4-inch connection port on the back of machine
