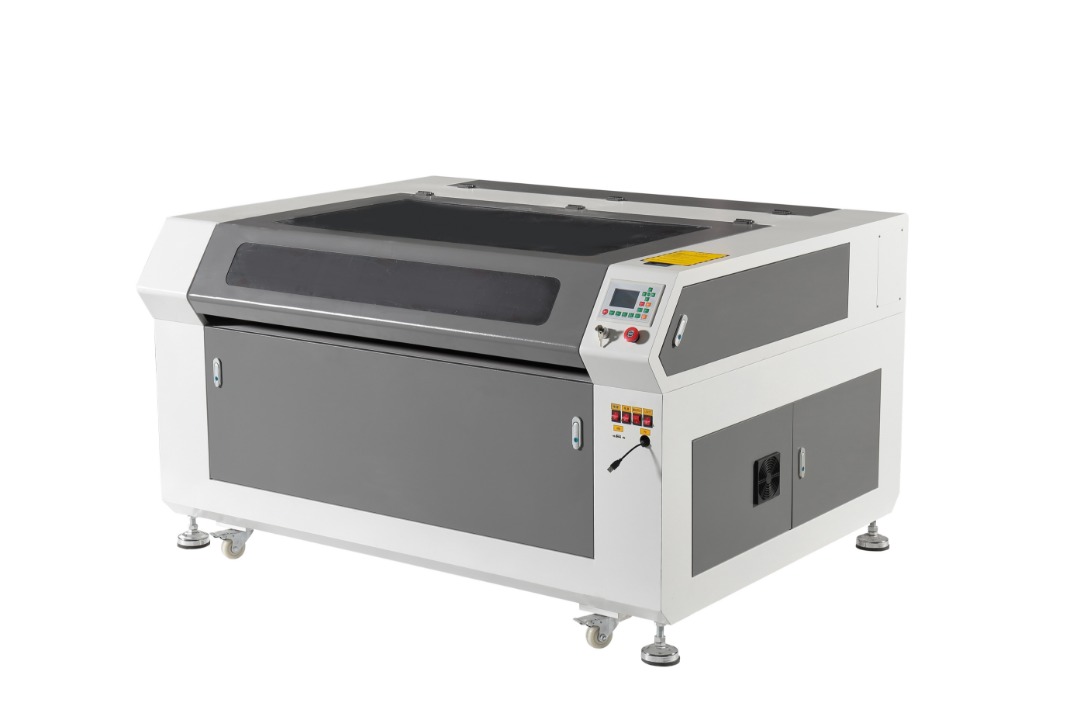

1.High Speed Laser Engraving Machine&Laser Cutting Machine adopts new high-efficiency laser tube, the laser beam is more stable than the traditional type,and the life time of the laser tube can be over 10000 hours.

2. More scientific design and high-strength steel-frame structure , which increase the fuselage strength more than 40% to prevent the machine from distortion during long term work.

3. The humanized and modern appearance shows Ruofen's consistent humanity idea, and it also makes the operation and maintenance quite easy.

4. Advanced Leetro6585 control system and laser cutter 5.3 software can help laser machine works very well.

5.With red light positioning device accurately indicates the location of the processing of the laser head, eliminate the trouble about manual positioning.

MODEL	Sk 21	Sk 32	Sk 43	Sk 48
X, Y Cutting Area	2’ x 1’	3’ x 2’	4’ x 3’	4’ x 8’
Laser Power	60 W	80 W	100 W	130 W / 150 W
Traveling Speed	400 mm/s
Reposition Accuracy	0.02 mm
Minimum Latter Size	1 mm (English Font)
X Y Movement System	Belt Transmission
Power Adjustment	1 to 100 %
Maximum Cutting Thickenss	Up to 10 mm Acrylic	Up to 15 mm Acrylic	Up to 20 mm Acrylic	Up to 25 mm Acrylic
Driving System	Stepper Motor
Operating System	Window 7 32 bit/ 64 bit/ Window10
Interface	USB Interface
Supported Format	PLT, DX, BMP, JPG, AI
Working Voltage	Single Phase 220 V / 50 Hz (Required Earthing)
Running Environment	45 C, Humidity 5% - 80%
Controller	RD Controller
Power Cunsumption	1.2 KW	2 KW
