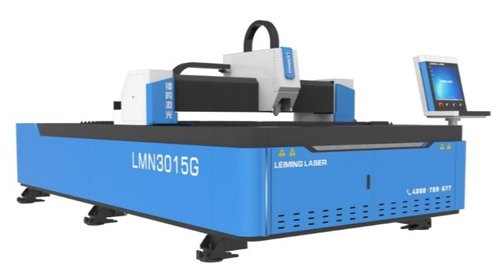

Fiber Laser Metal Cutting Machine

Fiber Laser Metal Cutting Machine



Product Specification:

MODEL



LMN3015G

Working Size

3000mm*1500mm

X-Axis Travel

3000mm

Y-Axis Travel

1500mm

Z-Axis Travel

120mm

Laser Power

300W / 500W / 750W / 1000W / 1500W / 2200W

Laser Wavelength

1080nm

Cutting Head

DLSEN / SENFENG / RAYTOOLS

X/Y AXIS POSITION ACCURACY

± 0.05 mm/m

X/Y AXIS Repeated Positioning

± 0.02 mm/m

Maximum Velocity of Movement

80m/min

Electromechanical

SIEMENS

Drives & Control

SCHNEIDER

Cooling System

Water Cooling

Working Voltage

AC 440V

Machine Weight

2200 KG

Outline Size

4600mm*2460mm*1360mm
