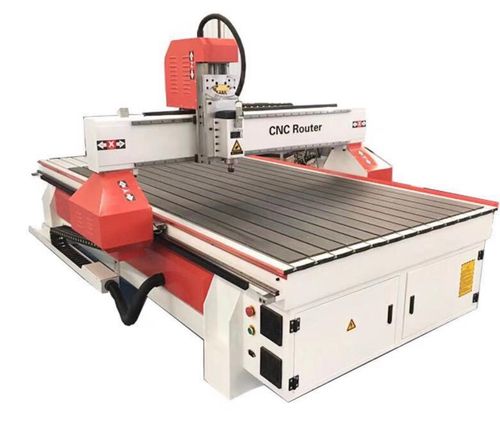

CNC Router

CNC Router


The bed is made of square steel, analyzed and designed with heavy duty structure, relieving stress, so the working table is more stable

Transmitting system parts with long years work, it can guarantee high precision and less machinery gap.

Working table is vacuum table.7.5Kw vacuum pump is Air Type.

Double linear bearing to drive the Y shaft, which improve speed and more stable, it can cut repeatedly.

High speed and efficiency, empty speed is up to 50000/min, for engraving wave plank, the speed can reach 20000mm/min.

Auto lubrication makes maintenance much easier.

Compatible Software: Compatible various CAD/CAM software like; Art Cam/ Type3


Product Specification:

Model

AP-6590

AP-1212

AP-1325

AP-1530

Working Area (X,Y, 2)

650 x 900 x 100 mm

1200 x 1200 x 200mm

1300 x 2500 x 200 mm

500 x 3000 x 200 mm

Spindle

1.2 KW Air Cooled,(HSD Italian)

3 KW Air Cooled,(HSD Italian]

6 KW Air Cooled,(HSD Italian]

6 KW Air Cooled, (HSD Italian]

Spindle Speed

18000 RPM

18000 RPM 2

18000 RPM

18000 RPM

Distance Between Bed &Gentry

130 mm

200 mm

200 mm

200 mm

Maximum Travelling Speed

10 mtr/min

18 mtr/min

18 mtr/min

18 mtr/min

Cutting Tool Diameter

03 to 0 10 mm

03 to 014 mm

03 to 016 mm

03 to 016 mm

Repeated Location

0.035 mm

0.025 mm

0.025mm

0.025 mm

Operating System

DSP-Hand Held Controller

DSP-Hand Held Controller

DSP-Hand Held Controller

DSP-Hand Held Controller

Driving System

Stepper Motor

Stepper Motor

Stepper Motor

Stepper Motor

Power Supply

AC 230V/1PH

AC 420V/ 3PH

AC 420V/3PH

AC 420V/3PH
